Shelly Qubino Wave 1
SH-SHELLYWAVE1
Regular price
$47.95
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.

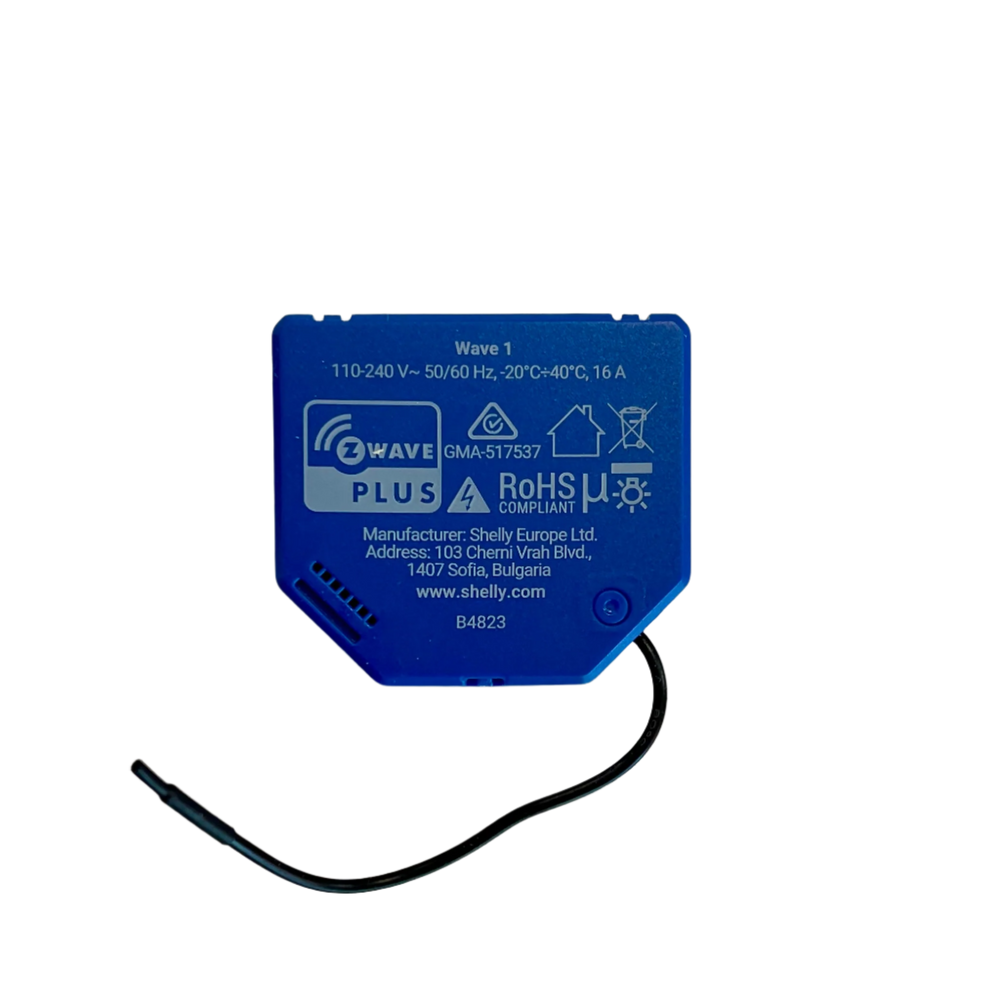

Shelly Qubino Wave 1
SH-SHELLYWAVE1
Regular price
$47.95
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
The Shelly Qubino Wave 1 is a Z-Wave® smart switch with 1 channel and 16 A capacity, featuring dry contacts. Easily control lights, garage doors, irrigation systems, and sockets from anywhere. This device also has a voltage-free output contact, allowing for connection to power loads up to 16 A.
-
Dry contacts
-
Extremely low power consumption: < 0.3 W.
-
Z-Wave frequency band: 919.8 MHz (Australia and New Zealand)
-
Latest technology: Z-Wave 800 Series
-
Automatic set-up with SmartStart
-
Security 2 Authenticated for the highest level of security
-
Supports over-the-air firmware updates
-
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
Z-Wave operated
Easily add Wave 1 to your Z-Wave network and remotely control it. It works with all certified Z-Wave gateways. Easily connect devices within your Z-Wave network and create custom actions without the need for a hub!
Dry contacts
Easily connect a variety of power supplies (up to 16A) to your device.
Wide range of voltage support
Control a variety of devices and appliances with ease.
Custom schedules and Smart Scenes
Craft customised schedules that fit your daily routine or sync with sunrise/sunset to control your lighting (requires a gateway). Easily create personalised scenes by pairing Wave 1 with any other Z-Wave device (gateway required).
This smart device can easily fit behind any switch or socket, instantly making it a part of your smart home. Once installed, you can easily connect it to your Z-Wave network (requires a Z-Wave gateway) and control your appliances from your smartphone or tablet. With over 4000 certified Z-Wave devices and gateways, Shelly Qubino is compatible with a wide range of products.
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
| Power supply | 110 - 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ frequency bands: | 919,8 MHz (Australia & New Zealand) |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight | 26 g / 0.92 oz. |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
Specifications
