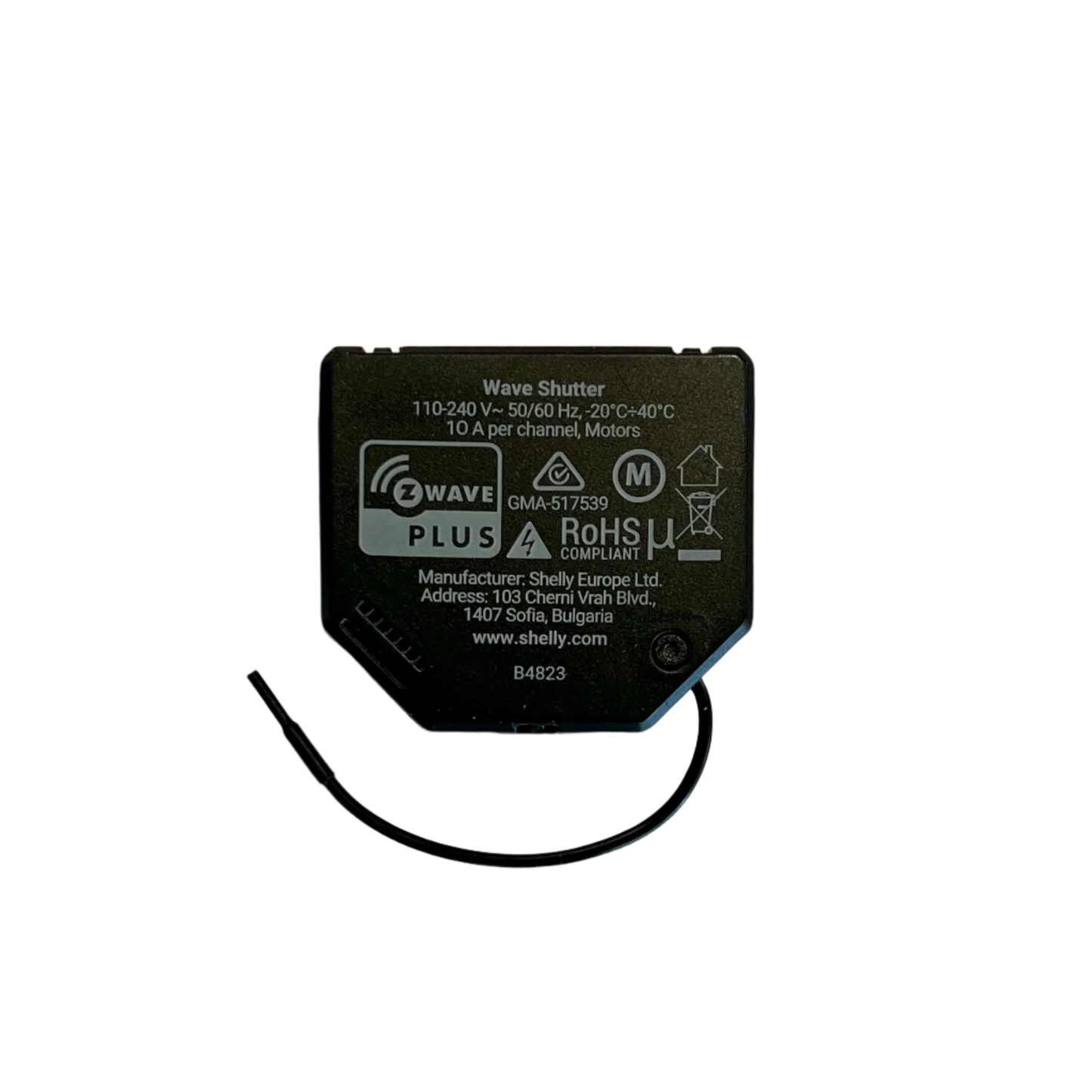

Shelly Qubino Wave Shutter
SH-SHELLYWAVESHUT
Regular price
$59.95
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
Shelly Qubino Wave Shutter
SH-SHELLYWAVESHUT
Regular price
$59.95
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
Choose with confidence, knowing all our products are from Authorised Australian Distributors and are backed by a solid Australian warranty. We strictly avoid grey imports.
- Control the tilt position (angle) of the venetian blind slats
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 919.8 MHz (Australia & New Zealand)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
This smart device, the Shelly Qubino Wave Shutter, can easily fit behind any switch or socket, instantly making it a part of your smart home. Once installed, you can easily connect it to your Z-Wave network (requires a Z-Wave gateway) and control your appliances from your smartphone or tablet. With over 4000 certified Z-Wave devices and gateways, Shelly Qubino is compatible with a wide range of products for a seamless smart home experience.
Z-Wave Operated
Integrate Wave Shutter into your Z-Wave network for remote control. It is compatible with all certified Z-Wave gateways.
Position control
Adjust the positioning of your blinds, roller shutters, screens, awnings, and other bi-directional AC motor-powered devices as desired.
Slats angle control
Easily control the tilt angle of your venetian blinds with Shelly Qubino Wave Shutter, allowing you to adjust the amount of light in any room.
Associations
Connect your Z-Wave devices in your local network and easily program custom actions without the need for a hub!
Custom schedules and Smart Scenes
Craft customised schedules that fit your daily routine or sync with sunrise/sunset to control your lighting (requires a gateway). Easily create personalised scenes by pairing Wave Shutter with any other Z-Wave device (gateway required).
| Power supply | 110–240 V AC ±10% |
|---|---|
| Power consumption | < 0.3 W |
| Power measurement [W] | Yes |
| Max switching voltage AC | 240 V |
| Max switching current AC | 10 A per channel |
| Overheating protection | Yes |
| Overcurrent protection | Yes |
| Distance | up to 40 m indoors (131 ft.)(depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequencies band(s) | 919,8 MHz (Australia & New Zealand) |
| Maximum radio frequency power transmitted in frequency bend(s) | < 25 mW |
| Size (H x W x D) | 37 mm x 42 mm x 16 mm ± 0.5 mm / 1.46 in x 1.65 in x 0.63 in ± 0.02 in |
| Weight | 29 g / 1.02 oz. |
| Mounting | Wall console |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm? / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
Specifications
